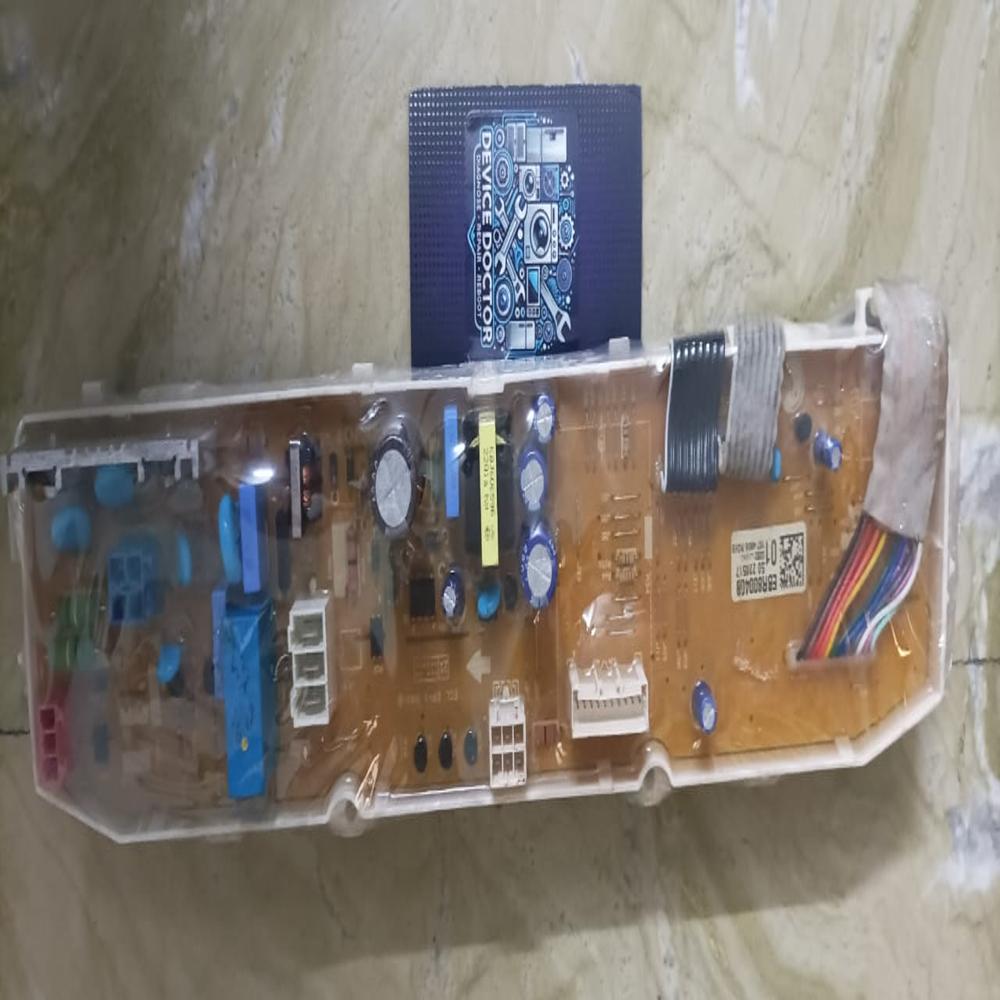

LG Top Load Washing Machine 10 Button PCB

Name: LG Top Load Washing Machine 10 Button PCB
Brand: Device Doctor Enterprises
Price: 1600.0 INR
Availability: InStock

Price 1600.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Number

LG Top Load Washing Machine 10 Button PCB Specification

Insulation Resistance
>500 M

Hole Size
0.6 mm (Minimum)

Soldermask
Green Epoxy

Flame Resistance Level
UL94 V-0

Test
E-Test

Silkscreen
White

Voltage Endurance
250V AC

Min. Line Spacing
6 mil

Board Type
Rigid Printed Circuit Board (PCB)

Impedance
Controlled Impedance Not Specified

Min. Line Width
6 mil

Product Type
Top Load Washing Machine 10 Button PCB

Base Material
FR4

Surface Finish
HASL

Copper Thickness
1 oz/ft2

Board Thickness
1.6 mm

Color
Green

Panel Size
300 mm x 200 mm (Approximate)

Sensor Switch
Tactile Push Button

Electrical Components
Microcontroller, Surface Mount Resistors, LEDs, Connectors

Number Of Layers
2 Layers

Connector Type
Pin Header

Display Type
No integrated display

Power Supply
12V DC (from main control board)

Number of Buttons
10

Operating Temperature Range
-20C to +60C

RoHS Compliance
Yes

PCB Weight
~60 g

PCB Shape
Rectangular

Functionality
Controls program, start, pause, power, time, and other washing machine operations

Compatibility
LG Top Load Washing Machines

Button Type
Soft Touch

Mounting Type
Panel Mount

LG Top Load Washing Machine 10 Button PCB Trade Information

Minimum Order Quantity
1 Number

Supply Ability
1 Number Per Day

Delivery Time
3 to 4 Days

Sample Available
Yes

Main Export Market(s)
Asia

Main Domestic Market
All India

About LG Top Load Washing Machine 10 Button PCB

An LG top load 10-button PCB is the central control board for LG non-inverter, fully automatic top-load washing machines that manages wash cycles and functions. It receives user input from the 10-button control panel and sends timed signals to the motor, water inlet valves, and drain pump to automate the entire washing process. This circuit board also interprets data from sensors, like those for water level, to ensure the machine operates efficiently and safely.

Comprehensive Control for LG Top Load Washers

This 10-button PCB offers intuitive management of washing machine functions, from cycle selection to power control. Designed for LG top load models, its tactile soft touch buttons ensure easy, reliable operation. The compact, rigid structure provides exceptional durability in varied home environments.

Engineered for Quality and Safety

Constructed from premium FR4 material, this PCB features robust electrical properties, advanced safety testing, and RoHS compliance. Its surface finish and insulation resistance ensure long-lasting operation while maintaining environmental and user safety standards in your home.

FAQ's of LG Top Load Washing Machine 10 Button PCB:

Q: How do I install the LG Top Load Washing Machine 10 Button PCB?

A: To install the PCB, first disconnect your washing machine from the power source. Access the control panel, detach the old PCB, and carefully align the new board's pin header connectors with the existing sockets. Secure the panel mount and ensure all connectors are tightly fitted. If unsure, professional installation is recommended.

Q: What functions can I control with this 10-button PCB?

A: This PCB lets you manage washing programs, start and pause cycles, adjust timing, and control power-all with soft touch tactile push buttons for seamless operation of your LG top load washing machine.

Q: When should I consider replacing my washing machine's PCB?

A: Replace the PCB if your LG top load washing machine experiences malfunctioning buttons, inconsistent cycle control, or failure to respond to user inputs after basic troubleshooting. Frequent issues with selecting or starting wash programs can also indicate PCB failure.

Q: Where is this PCB compatible?

A: This PCB is designed exclusively for LG top load washing machines. Always check the compatibility with your specific model to ensure proper fit and function before purchasing or installing.

Q: What is the usage process after installation?

A: Once installed, simply use the soft touch buttons to select your desired washing program, start or pause the machine, and adjust cycle timings as needed. The PCB reliably manages user commands, providing straightforward machine operation.

Q: What are the benefits of a RoHS-compliant PCB for home appliances?

A: A RoHS-compliant PCB reduces harmful substances like lead, protecting both the environment and your household. It ensures that the product meets strict international safety standards, minimizing health risks and promoting sustainability.
